AC EV Charger

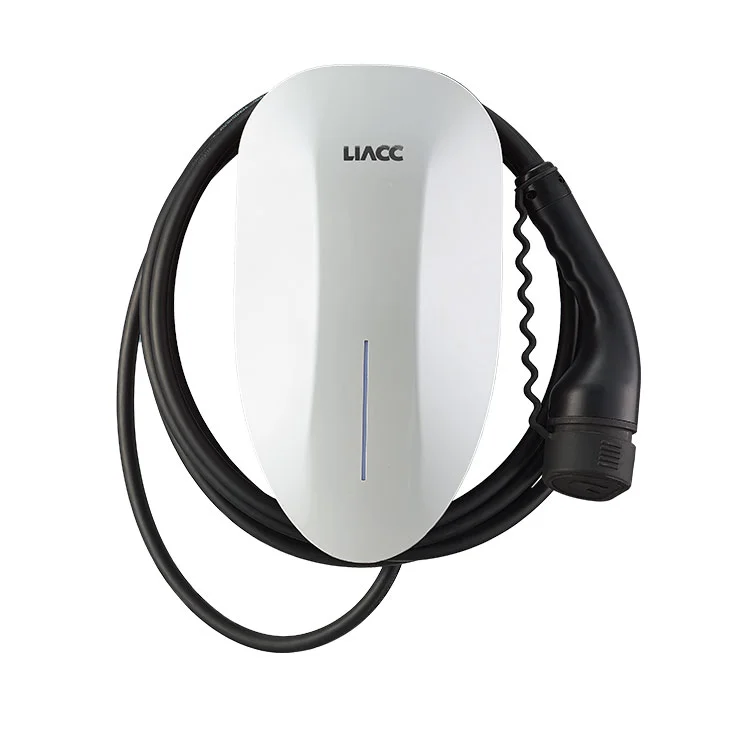

22KW AC EV Charger Tethered Wallbox

Aegis 22KW AC EV Charger Tethered Wallbox is complied with IEC61851:2022, it is built-in Type B RCD, presents premium circuit protection performance. And its housing designed to be IP65 protection degree, and IP54 for whole charger system, which is proved to be whether resistance and suitable for either indoor or outdoor installation. It is also featured with smart functions, such as: Dynamic load balance(DLB), WiFi&APP control, OCPP1.6 etc.

Request a Quote

Why choose LIACC 22KW AC EV Charger Tethered Wallbox?

LIACC 22KW AC EV charger tethered wallbox is designed and developed by our engineer, and it is complied with IEC61851, IEC62916 standards.

We guarantee its safety and simplicity so that you can fully enjoy your charging experience without other measures. LIACC 22KW AC EV charger tethered wallbox is built-in a more intelligent controller, which is upgraded with a significant feature of Dynamic Load Balance(DLB). With the benefits of DLB, LIACC 22KW AC EV charger tethered wallbox helps to optimize the household power load management, by monitoring instant power consumption of house system, and automatically adjusting its output charging power, both power increase and decrease. It will contain the total power consumption below the max capacity of main system load, and avoid the unexpectedly tripping of main circuit breaker due to overload.

What’s more, it is built-in type B RCD, LIACC 22KW AC EV charger wallbox can offer Over voltage Protection, Under voltage Protection, Overload Protection, Short Circuit Protection, Earth leakage Protection, Ground fault Protection, Over-temp Protection and etc.

Specification

Model	EVB-332-TC2
Dimension(mm)	360mm(L)* 193mm (W) *170mm(H)
Color	Matte black, pearly white, red, blue, metallic gray
HMI	Screen （optional）
AC Power	AC 400V （three phase）
Rated Current	32A
Charging Power	22KW
Connector type	Type 2 / IEC 62196-2 / Europe Standard
Working Condition	Elevation：≤2000m; Temperature：-20℃~+50℃
Charging Mode	Plug and charge (RFID,WIFI-APP and OCPP are optional)
Protection Function	Overvoltage, undervoltage, overcurrent, short circuit, leakage, etc.
Cable Length	5m (optional)
Protection Level	IP55
Installation	Wall-mounted or floor-mounted installation
