22kW Type 2 To GB/T Adapter

LIACC is a professional manufacturer of 22kW Type 2 To GB/T Adapter. Can design and manufacture the adapters according to the customer's needs by ourselves, which meet China (GB) /EU(CE) standards. And LIACC can provide better OEM services for EV accessories purchaser all over the world for having a factory that we can lower cost efficiently and lift our producing quality better.

Request a Quote

LIACC 22kW Type 2 To GB/T adapter

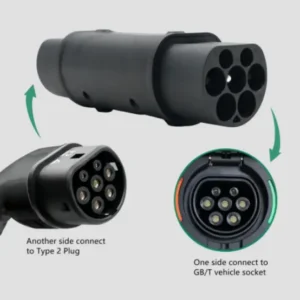

The adapter acts as a unifying solution, allowing EV owners with GB/T equipped vehicles to seamlessly connect and charge at Type 2 AC EV charger. This is especially valuable for international travelers or businesses operating in multiple regions, eliminating the need for separate charging equipment.

Warranty : 1 years.

Specification :

Product Model	EVA-T2-G-332

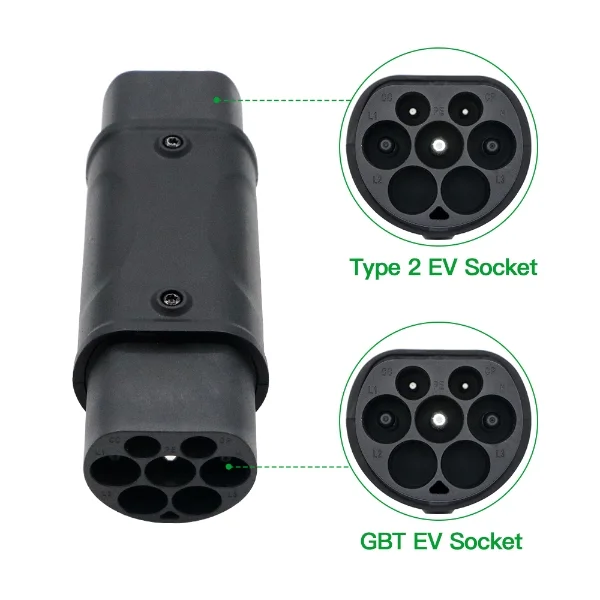

Adapter	Type 2 To GBT (IEC 62196 To GB/T)
Color	Black
Rated Current	32A
Rated Voltage	AC 400V （three phase）
Charging Power	22KW
Mechanical life	unload plug & off >10000 times
Working Temperature	-30℃~65℃
Insulation Resistance	>1000MΩ
Connector Pin	Copper Alloy, Silver Plating
Contact Resistance	0.5MΩ MAX
Protection Class	IP54
Shell Material	Thermoplastic (flame retardant rating V-0)
