– Compliance Std.: IEC 62752, IEC 62196
– Certificate: CE, RoHS, REACH by TUV
– Current adjustable from 8A to16A
– Time appointment
– Power 3.7kW max
The 3.7kW Portable EV Charger produced by LIACC is compatible with all electric vehicles and plug-in hybrid vehicles.
It is more durable, has a higher waterproof level and is more wear-resistant. The charging speed in 230V mode is 3 times faster than that of a 120V socket.
The device is compact, flexible and portable, and can be carried with you. Just plug it directly into the socket to charge at home, work or entertainment, so it can be easily used even in small spaces and provides a high charging rate available.
Protection technology
– DC fault & AC leakage protection: Integrated Type B DC6mA RCMU
– Overload protection
– Overheat protection
– Over current protection

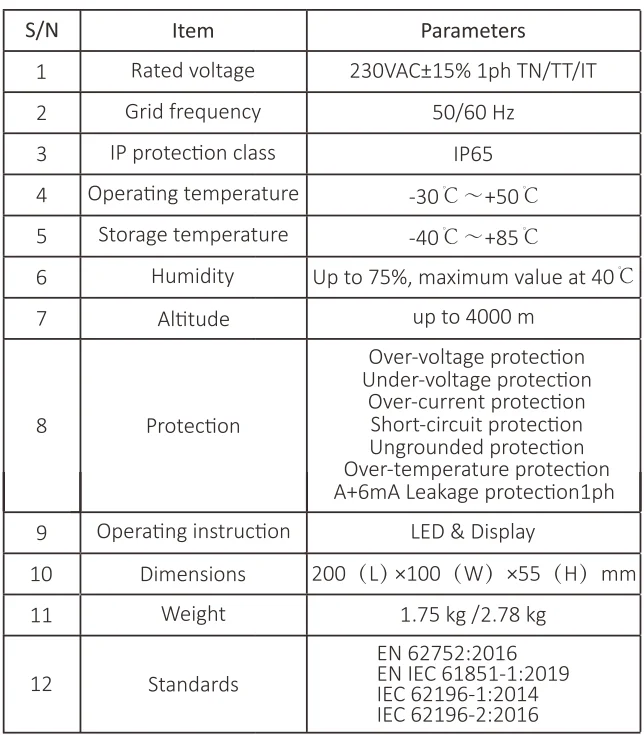

Specifications
| Model | EVE-116 |
| Product name | Portable EV charger/ IC-CPD |
| Dimension(mm) | 200mm (L) * 100mm (W) * 55mm (H) |
| Color | Black |
| Rated Voltage | 1P + N + PE AC 230V |
| Current | 8A / 10A/ 13A/ 16A |
| Cable | 3*2.5mm2 + 2*0.5mm2 |
| Frequency | 50/60Hz |
| Connector Type | Type 2 |
| Operating altitude | ≤4000m |
| Working temperature | -30℃~+50℃ |
| Working Humidity | up to 75% , maximum value at 40℃ |
| Storage temperature | -40℃~+85℃ |
| Protection Function | Over-voltage protection, Under-voltage protection, Over-current protection ,Short-circuit protection, non-grounded protection, Over-temperature protection, DC 6mA Leakage protection 1ph |
| Protection Level | IP65(housing) |
| Compliance Standards | EN62752:2016 |
| EN IEC 61851-1:2019 | |
| IEC 62196-1:2014 | |
| IEC62196-2:2016 | |
| Weight (kg) | 1.75kg |
| Warranty | 2 years |
